srm::Coord3D Class Reference

The Coord3D abstract class is used for representing 3D coordinates. More...

#include <Coord.h>

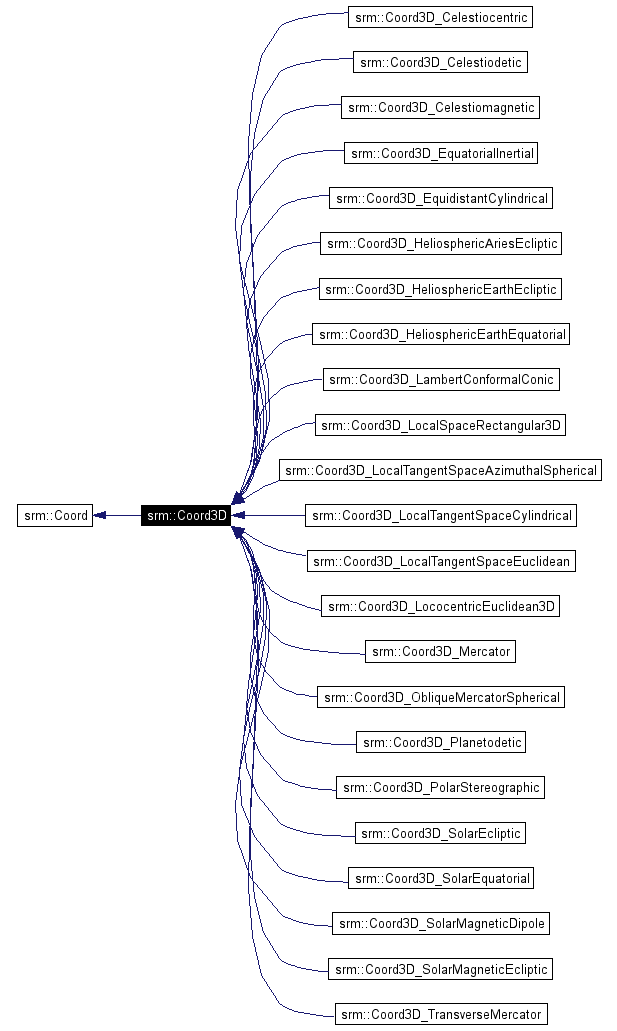

Inheritance diagram for srm::Coord3D:

[legend]Collaboration diagram for srm::Coord3D:

[legend]List of all members.

Public Member Functions
virtual bool	isA (Coord_ClassType type) const
	Returns true if this coordinate is of the given class type.
const SRM_Long_Float *	getValues () const
	Returns the coordinate component values as an array.
void	setValues (const Vector3 &values)
	Sets the coordinate component values as an array.
virtual const char *	toString ()
	Returns a string of the 3D coodinate component values.
virtual const char *	getMGRS (SRM_Integer precision)
	Return MGRS String corresponding to the 3D coordinate.
virtual void	setCoord (const char *mgrs)
	Sets the components of this coordinate corresponsing to the MGRS location.
Protected Member Functions
	Coord3D (BaseSRF *srf)
	Constructor.
Protected Attributes
Vector3	_values
	An array to store the coordinate component values.

---

Detailed Description

The Coord3D abstract class is used for representing 3D coordinates.

See also:

Coord

Definition at line 229 of file Coord.h.

---

Member Function Documentation

virtual const char* srm::Coord3D::getMGRS (  SRM_Integer  precision  )  [virtual]

Return MGRS String corresponding to the 3D coordinate. Note: This computation requires that the coordinate be in CD SRF. This function will perform conversion to CD internally if necessary to produce the proper result. Parameters: precision  in: the MGRS precision in the range => [ 1, 5 ], e.g., MGRS 31NAA6602100000 => level 5. Exceptions: This  method throws srm::Exception Note: The coordinates must be in the valid regions. The coordinate's SRF must be an Ellipsoid with A > 0.0 and F inverse in the range [ 250.0, 350.0 ].

virtual void srm::Coord3D::setCoord (  const char *  mgrs  )  [virtual]

Sets the components of this coordinate corresponsing to the MGRS location. Note: This computation requires that the coordinate be in CD SRF. This function will perform conversion to CD internally if necessary to produce the proper result. Parameters: mgrs  in: the MGRS string from which the coordinate components values are computed. Exceptions: This  method throws srm::Exception Note: The coordinates must be in the valid regions. The coordinate's SRF must be an Ellipsoid with A > 0.0 and F inverse in the range [ 250.0, 350.0 ].

---

The documentation for this class was generated from the following file:

• Coord.h

---
