Depth Tool

SEDRIS SDK Release 4.1.4

July 1, 2011

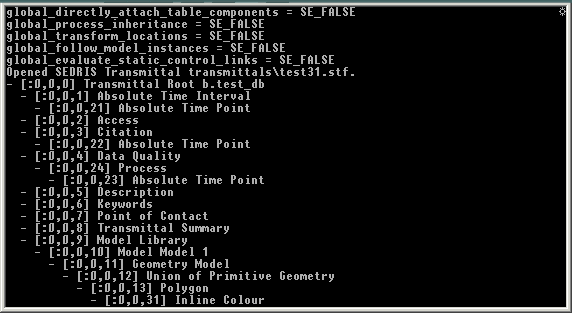

Sample image

  1. Synopsis
  2. Description
  3. Options
  4. Examples
  5. Sample Run
  6. Environment
  7. See Also

SYNOPSIS

depth [ options ] transmittal

DESCRIPTION

Depth performs a depth-first traversal of the given SEDRIS transmittal and prints the objects and fields to stdout in text format. It also prints the number of objects and object classes encountered.

OPTIONS

-c [-|configuration_file_name]

Specify optional file of configuration information; if "-" appears with no file name specified, read the configuration information from stdin.

-d<maximum depth>

Specify the maximum depth of the traversal (the default is zero, for unlimited depth.

-fast

"Fast" version of depth. Object counts are inaccurate (shared objects are counted multiple times), but this is still useful for "just touching" every object in a transmittal, especially when used in conjunction with the quiet modes.

-q

Quiet mode. Count the objects, but don't print them.

-qq

Very quiet mode. Don't even show the counting update.

-s"object id"

Start traversal at the object with the given object ID.

-u<update rate>

Specify the counting update rate (0=off, default=500).

-unique

Only count unique objects. Skip the shared objects.

-v

Verbose mode. Print class names and fields of each object. (The default is verbose mode off. Only class names of each object are printed).

-vv

Very verbose mode. Print contents of <Data Tables> and <Images>.

-version

Print the version and exit.

EXAMPLES

depth transmittals/test.stf

traverses the transmittal starting at the root object

depth -q transmittals/test.stf

traverses the transmittal without printing the object fields.

depth -v -c my_configuration_file transmittals/test.stf

traverses the transmittal using the options specified in "my_configuration_file".

depth -v -s":0,0,92" transmittals/test.stf

traverses the transmittal starting at the object with specified ID.

SAMPLE RUN

The following command (initiated in the "transmittals" directory):

depth -q test.stf
produces the following output:
Depth (C) v4.1.4.0 - SEDRIS 4.1.x compatible

glb_directly_attach_table_components = SE_FALSE
glb_process_inheritance = SE_FALSE
glb_transform_locations = SE_FALSE
glb_follow_model_instances = SE_FALSE
glb_evaluate_static_control_links = SE_FALSE

Opened transmittal "test.stf"
    Unique ID = 4BCD32E8-7863D914-90CF7951-E0141F92-CAF5D582


Maximum Tree Height = 10

        3       Absolute Time
        4       Ambient Colour
        1       Citation
        1       Data Quality
        4       Diffuse Colour
        1       Environment Root
        1       Geometry Model
        1       Geometry Model Instance
        1       Identification
        4       Inline Colour
        1       Keywords
        1       Legal Constraints
        1       Lineage
       29       LSR 3D Location
        1       Model
        1       Model Library
        4       Polygon
        2       Presentation Domain
        4       Primitive Colour
        1       Process Step
        2       Responsible Party
        8       RGB Colour
        2       Role Data
        1       Security Constraints
        1       Spatial Extent
        4       Translucency
        1       Transmittal Root
        1       Transmittal Summary
        1       Union Of Geometry Hierarchy
        2       Union Of Primitive Geometry
       27       Vertex

Total object count = 116

ENVIRONMENT

See the SEDRIS SDK Runtime Environment variables.

SEE ALSO

Rules Checker, Syntax Checker, Model Viewer, Tools And Utilities document
